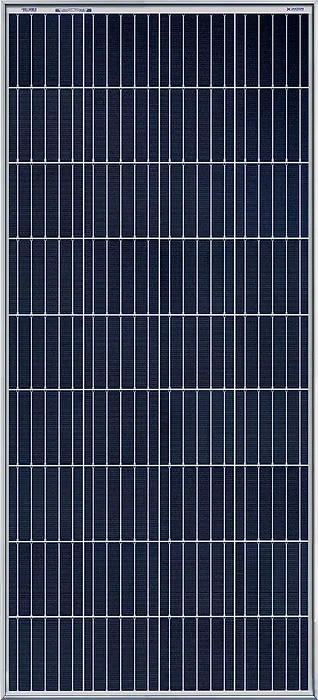

Polycrystalline Solar PV Modules - 36 Cells
We offer Jakson manufactured exceptionally reliable & highly efficient solar PV modules based on crystalline silicon technology ranging from 5 - 160 Wp in power output for use in a wide range of on-grid & off-grid solar power plants, solar water pumps, solar street lighting & other solar systems.
These modules are manufactured using automated production lines procured from Europe and installed at their plant in Greater Noida, India. Jakson solar modules are sealed, weatherproof and exceptionally durable with the ability to withstand high levels of ultraviolet radiations and moisture.
Specifications
-
Cell Type – Polycrystalline
-
No of Cells – 36
-
Power Output Range – 5 to 160 Wp
-
Efficiency – 14.9%
-
Power Tolerance – 0 to +5 Wp
Key Features
-
5 Busbar Solar Cell - 5 busbar cell design improves module efficiency and offers better power output
-
Outstanding Durability - With its reinforced frame design, our modules can endure front load of up to 5400 Pa and rear load of up to 2400 Pa to withstand heavy wind & snow loads
-
High Power Output - Our PV modules are compact in size and have been designed to deliver enhanced output and efficiency
-
Better Performance in High Temperature - Our PV modules deliver efficient performance even in high temperature conditions due to its improved temperature coefficient
-
Low Light performance - Advanced glass and cell surface texture design ensures excellent performance in low light environment
-
Enhanced Performance - Our PV modules provide more than 80% efficiency even after 25 years of operation
-
Global Certifications - IEC 61215, IEC 61730 (I & II), Ammonia and hail resistant (IEC 61701), Comply to BIS standard
Polycrystalline Solar PV Modules - 60 Cells
Next in-line, we offer exceptionally reliable & efficient solar PV modules based on polycrystalline silicon technology ranging from 250 - 275 Wp in power output. The modules are ideal for use in large-scale ground mounted solar plants as well as off-grid and on-grid rooftop solar power plants.
Manufactured using automated production lines procured from Europe, Jakson solar modules are sealed, weatherproof and exceptionally durable with the ability to withstand high levels of ultraviolet radiations and moisture. Our modules are PID compliant and suitable for varied applications.
Specifications
-
Cell Type – Polycrystalline
-
No of Cells – 60
-
Power Output Range – 250 to 275 Wp
-
Efficiency – 16.9%
-
Power Tolerance – 0 to +5 Wp
Key Features
-
5 Busbar Solar Cell - 5 busbar cell design improves module efficiency and offers better power output
-
Outstanding Durability - With its reinforced frame design, our modules can endure front load of up to 5400 Pa and rear load of up to 2400 Pa to withstand heavy wind & snow loads
-
High Power Output - Our PV modules are compact in size and have been designed to deliver enhanced output and efficiency
-
Better Performance in High Temperature - Our PV modules deliver efficient performance even in high temperature conditions due to its improved temperature coefficient
-
Low Light performance - Advanced glass and cell surface texture design ensures excellent performance in low light environment
-
Enhanced Performance - Our PV modules provide more than 80% efficiency even after 25 years of operation
-
Global Certifications - IEC 61215, IEC 61730 (I & II), Ammonia and hail resistant (IEC 61701), Comply to BIS standard
Polycrystalline Solar PV Modules - 72 Cells
Our 72 Cell solar PV modules are based on polycrystalline silicon technology ranging from 315 - 335 Wp in power output. The modules are ideal for use in large-scale ground mounted solar plants where space is not a constraint, as well as off-grid and on-grid rooftop solar power plants. While the efficiency is lesser, Poly solar panel is more economical compared to mono perc panels.
Manufactured using automated production lines procured from Europe, Jakson poly solar panels or modules are sealed, weatherproof and exceptionally durable with the ability to withstand high levels of ultraviolet radiations and moisture. Our modules are PID compliant and suitable for varied applications.
Specifications
-
Cell Type – Polycrystalline
-
No of Cells – 72
-
Power Output Range – 315 to 335 Wp
-
Efficiency – 17.26%
-
Power Tolerance – 0 to +5 Wp
Key Features
-
5 Busbar Solar Cell - 5 busbar cell design improves module efficiency and offers better power output
-
Outstanding Durability - With its reinforced frame design, our modules can endure front load of up to 5400 Pa and rear load of up to 2400 Pa to withstand heavy wind & snow loads
-
High Power Output - Our PV modules are compact in size and have been designed to deliver enhanced output and efficiency
-
Better Performance in High Temperature - Our PV modules deliver efficient performance even in high temperature conditions due to its improved temperature coefficient
-
Low Light performance - Advanced glass and cell surface texture design ensures excellent performance in low light environment
-
Enhanced Performance - Our PV modules provide more than 80% efficiency even after 25 years of operation
-
Global Certifications - IIEC 61215, IEC 61730 (I & II), IEC 61853 certified, Sand and dust storm resistant (IEC 60068), Certification as per BIS Salt mist, ammonia and hail resistant (IEC 61701) (IEC 62716)
